微型公制軸承系列現已停產。

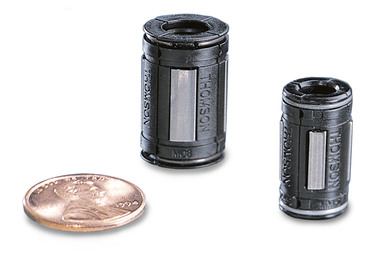

Thomson Miniature Metric Ball BushingTM 軸承?可在輕便、小巧的包裝內?順暢快速?運轉，在使用壽命方面?是傳統型線性軸承的 27 倍之多！輕型設計可實現精確移動和快速加速。雙唇式一體化刷子有助于?安全潤滑和防止灰塵進入，這可延長使用壽命。超精加工軸承板可確保運行順暢和長久的 使用壽命。?提供可用于惡劣環境的耐腐蝕型選件。?
| 規格 | MM03 | MM05 | MM08 | MM12 |
|---|---|---|---|---|
| LinearRace 軸尺寸：mm | 3? | 5 | ?8 | 12 |
| 軸承類型： | 閉式 | 閉式 | 閉式 | 閉式 |
| 軸承滾道數量： | 4? | 4 | 4 | 5 |
| 動態負載額定值：N (lbf)* | 45 (10) | 170 (38) | 310 (70) | 650 (146) |
| 負載限值：N (lbf)** | 50 (11) | 190 (43) | 340 (76) | 715 (161) |
* 用于額定值為 100 km 的行進壽命。
** 負載限值為可向軸承/軸施加的最大負載。
注：務必分析應用，以確保最高或/與沖擊負載不超過負載限值。
